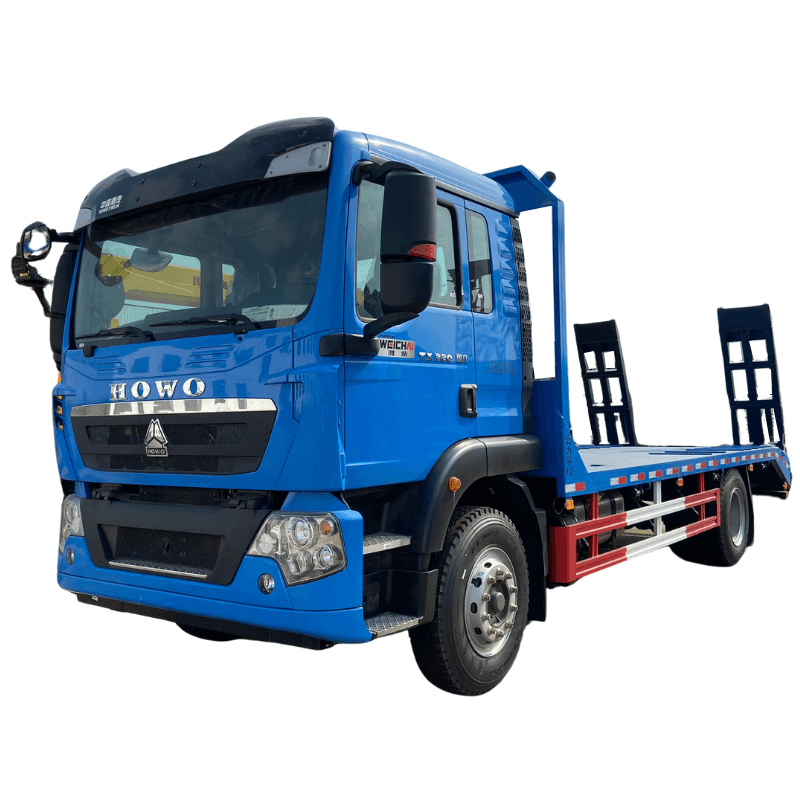

Howo 4×2 15ton Self Loader Flatbed Truck

Flatbed trucks also known as self-loader trucks, the flatbed is made of pattern steel, with a thickness of 8mm.

The height of the flatbed from the ground is 1.05m.

Description

A flatbed truck is a truck with a rigid design. The advantage of a flatbed truck is that it is easy to load and unload goods because they have an open bed and can be quickly loaded and unloaded using tools such as cranes and forklifts. Flatbed trucks are mainly used to transport heavy, oversized, wide, and unbreakable goods such as machinery, construction materials, Farming materials, and heavy equipment.

Why choose this Howo 15-ton flatbed truck with a crane?

1. The flatbed is 6.2m long, with a loading capacity of 15 tons, made of 8mm thickness pattern steel.

2. It is equipped with mechanical rear ramps in the rear(optional hydraulic ramps)

3. Weichai engine, with a maximum engine power of 300 horsepower.

4. Optional a boom crane be installed behind the driver’s cabin.

5. It is equipped with a 10-ton hydraulic winch. (optional according to customer’s requirement)

Vehicle Description
Overall dimensions 8250*2500*3200mm
GVW 19000kg
Curb weight 6525kg
Chassis brand Sinotruk Howo
Traction type 4X2



Flatbed Description
Loading capacity 15-20T
Length 6200mm
Material Checkered plate
Thickness 8mm
Standard configuration Equipped with double spring ladder;
Equipped with rear landing leg.
Optional configuration Single cylinder hydraulic ladder;
Double cylinder folding ladder;
Intermediate extension.



Chassis Description
Chassis model ZZ1257M4647C
Cab Flat-roof, half row
Wheelbase 4600mm
Tire specification 295/80R22.5
Tire quantity 6+1 units
Engine Engine model WP10.300E22
Emission level Euro 2
Displacement/output 9726ml/221kw
Horsepower 300hp
Gearbox Type Manual
Number of gears 10 forward gears & 2 reverse
Brake system Full air brake system
Axle Front 7.5T
Rear 16T
Suspension Front Leaf springs, with shock absorber
Rear Leaf springs
Fuel tanker Type Steel tanker, with lockable cap
Capacity 400L



Tags: flatbed truck, self loader, Excavator transport truck
